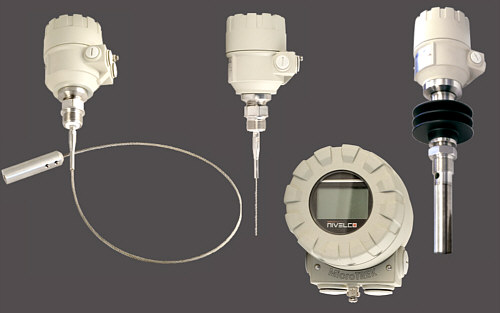

MicroTREK - Guided microwave level transmitter

APPLICATIONS

• Level, volume measurement
• Liquids, powders and granular mediums with Er>1.4
• Medium with turbulent surface, dense dust, vapour or pressurized gas layers above the product surface
• For all tank shapes, for narrow vessels

FEATURES

• Two-wire TDR Technology
• Digital communication
• High accuracy: ±5 mm
• High pressure range
• High temperature range
• Extremely low dead band
• Large Dot-Matrix graphic display
• Local programming feature
• Text-based menu system
• Plastic coated stainless steel probes (PFA, FEP, PP),
• Aluminium and plastic housing
• Wide range of probes
• Explosion-proof models,

SPECIFICATIONS

• Heavy industrial applications
• Power supply: 18-35 V DC
• Accuracy: ± 5 mm
• Medium temperature: -30...+ 200 °C
• Pressure: max. 40 bar
• Measuring range: up to 24 m
• Output: 4-20mA, loop powered
• Communication: HART
• Process connection: 1'' 1 1/2'' or flanges
• Ingress Protection:IP 65
• ATEX approval:
  II 1 G Ex ia IIC T6...T3
  II 1 G Ex ia IIB T6...T3
  II 1D iaD A20/A21 IP65 T100°C
