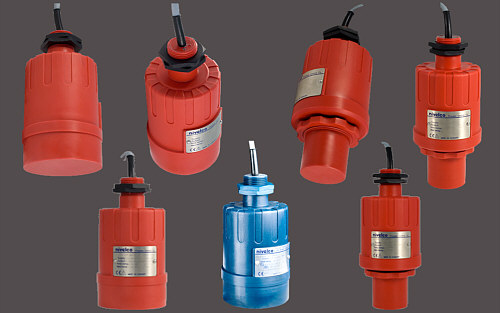

EasyTREK - Ultrasonic integrated level transmitter for liquids

• Most liquids, explosive liquids
• Level, volume and open channel flow measurement
• Reliable measurement in challenging applications such as vapour/fume stirrer and foam with liquids
• Where IP 68 is needed

FEATURES

• 2- or 4-wire compact transmitter
• Low cost
• Non-contact level measuring
• Narrow 5° beam angle
• Temperature compensated
• Excellent signal processing via QUEST+ software
• PP, PVDF housing
• Secondary lightning protection
• HART communication
• Explosion-proof models

SPECIFICATIONS

• Power supply: 2-wire, 12-36 V DC, 720mW / 4-wire, 11.4-40 V DC, 3.6W or 11.4-28 V AC, 4 VA
• Temperature: -30 °C to +80 °C
• Pressure: 0.3 .. 3 bar
• Measuring range: 0.2 - 15 m
• Output: 4-20 mA, relay, HART
• Protection: IP 68
• ATEX approval:
  II 1 G EEx ia IIB T6
