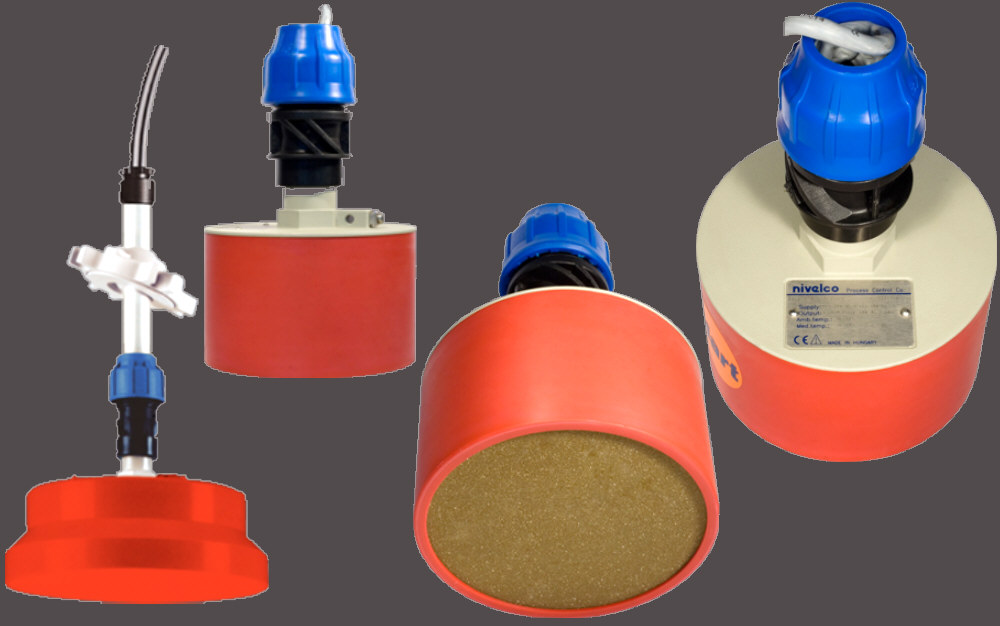

EasyTREK - Ultrasonic integrated level transmitter for solids

• Most free-flowing solids
• Level, volume or weight calculation
• Reliable measurement in challenging applications such as dusting during filling

FEATURES

• 3/4-wire compact transmitter
• Low cost
• Non-contact level measuring
• Narrow 5° beam angle
• feat0
• Temperature compensated
• Excellent signal processing via QUEST+ software
• Secondary lightning protection
• HART communication
• Power relay output
• Dust-Ex models

SPECIFICATIONS

• Power supply: 11.4-40 V DC, 3.6W or 11.4-28 V AC, 4 VA
• Ambient temperature: -30 °C to +60 °C
• Medium temperature: -30 °C to +90 °C
• Pressure: 0.7 .. 1,1 bar
• Measuring range: max. 60 m
• Output: 4-20 mA, relay, HART
• Protection: IP 65
• ATEX approval:
  II 1 D IP65 T130°C
