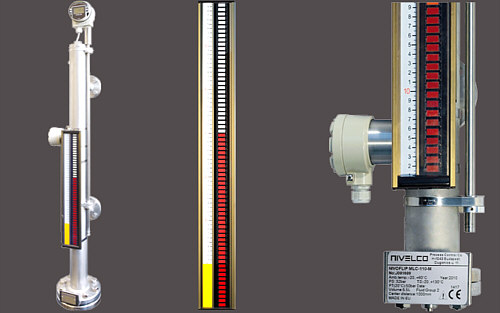

NIVOFLIP - Bypass liquid level indicator

• Oil industry
• Chemical industry
• Power industry
• Boilers
• Pressurized vessels

FEATURES

• Clearly visible optical display
• Max. 5500mm measuring range
• ± 10mm accuracy
• Max. 100 bar medium pressure
• PED (Pressure Equipment Directive) approval
• Optional magnetostrictive level transmitter
• Optional magnetic limit switches

SPECIFICATIONS

• Center to center distance: 500-5500 mm
• Process connection: DN15-DN50 or ANSI 1/2-2" flanges
• Process pressure: 100 bar
• Material of wetted parts: 1.4571 / 1.4404 stainless steel / Ti
• Process temperature: -40°C +250°C
• Medium density: with stainless steel float: 0.8-1.25 kg/dm³
  with titan float: 0.5-0.9 kg/dm³
• Optional limit switches
• ATEX approval:
  II (1) [Ex ia] IIC / IIB T4...T6 Ga certified level switch
• Optional level transmitter: NIVOTRACK MT-500 series magnetostrictive transmitters
