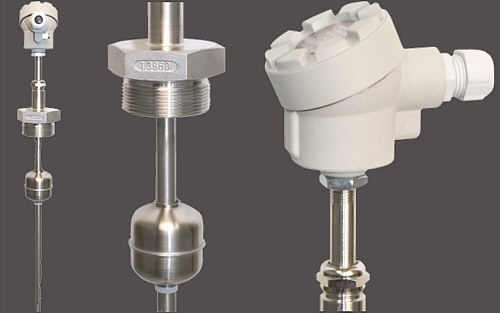

NIVOPOINT - Magnetic tracking level switches

• Liquids with min. 0.5 kg/dm3 or 0.8 kg/dm3 density
• Multi-point level switch in closed tanks
• Chemicals with dense vapour or gas layer above the surface
• Foaming liquids

FEATURES

• Operation without power supply
• Reed switches separated from process
• Wetted parts stainless steel or plastic
• Up to 5 switch points
• Vertical adjustability of all switch points
• Various process connections
• Explosion-proof models

SPECIFICATIONS

• Switch rating: 250 V AC, 3A / reed relay, max. 9A
• Ambient temperature: -20 °C to +95 °C
• Medium temperature: -20 °C to +150 °C
• Medium pressure: max. 25 bar
• Process connection: 1'', 2'' or flanges
• Ingress protection: IP 65
• Ex marking: II 2 G EEx d IIC T3...T6 (TÜV)
• Approvals: Bureau Veritas (BV) only for Mini type (MZ-100) instruments
