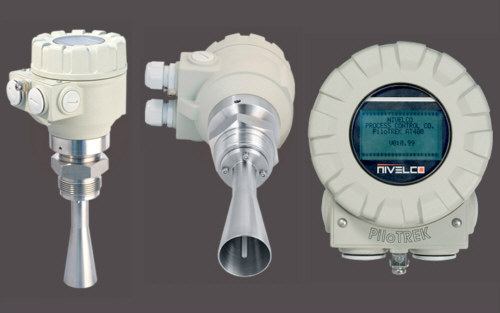

PiloTREK - Non-contact microwave level transmitter

APPLICATIONS

• Level measurement of liquids, slurries, emulsions and other chemicals
• Water and wastewater industry
• Pharmaceutical industry, chemical industry
• Food-industry, energy-industry
• For high precision level measurement tasks

FEATURES

• 25 GHz K-band, 2-wire
• Easy installation due to small antennas
• 23 m measuring range
• ±3 mm accuracy
• HART communication
• Plug-in graphical display module
• High temperature version

SPECIFICATIONS

• Measuring frequency: 25 GHz (K-band)
• Power supply: 24 V DC (nominal)
• Output: 4-20 mA, HART
• Antenna material: horn: 1.4571, enclosure (optional): PP, PTFE
• Antenna diameter: DN40 mm (1½''), DN50 mm (2''), DN80 mm (3'')
• Medium temperature: -30 °C … +100 °C, high temperature version: -30 °C … +180 °C
• Process pressure (depending on the antenna): -1 … 25 bar
• Process connection: 1½'', 2'' BSP/NPT, or DIN/ANSI flanges, TRICLAMP, DN50 sanitary
• Ingress protection: IP67
• Communication certifications: FCC, R&TTE
• ATEX approval:
  II 1/2 G Ex ia IIB T6...T5 Ga/Gb
  II 1 G Ex ia IIB T6...T3 Ga
