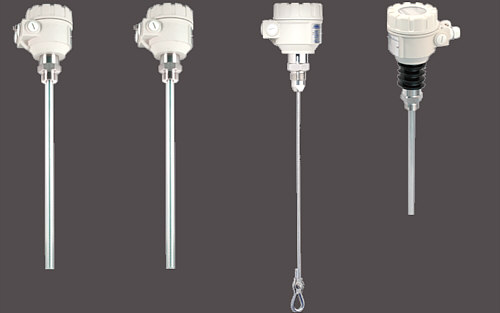

Capacitive level transmitter

• Liquids, powders, granules with Er>1.5 relative dielectric constant
• Chemicals with dense gas layers above the surface
• Viscose or corrosive mediums
• High pressure, high temperature or vacuum

FEATURES

• 2-wire compact transmitter with HART protcol
• Rod or cable probes up to 20 m
• Fully or partly insulated probes
• Secondary lightning protection
• 32 point linearisation
• High sensitivity
• Aluminium or plastic housing
• Explosionproof models

SPECIFICATIONS

• Power supply: 12-36 VDC
• Ambient temperature: - 25°C to +70°C
• Medium temperature: - 30°C to +200°C
• Pressure: max: 40 bar
• Output: 4-20 mA, HART
• Process connection: 1'' or 1 1/2'' or flanges
• Protection: IP67
• ATEX approval:
  II 1 G EEx ia IIB T6
