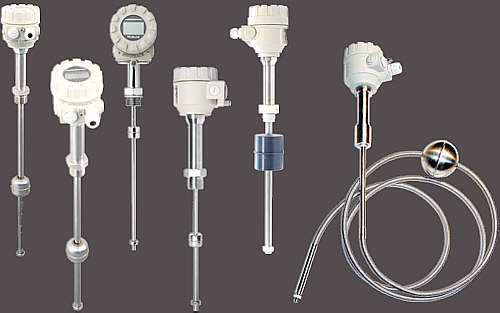

NIVOTRACK - Magnetostrictive level transmitter

• Liquids with min 0.5 kg/dm3 density
• For custody transfer
• Oil and gas industry
• Flammable liquids and solvents
• Chemicals, solvents, hydrocarbons
• Alcohols and beverages
• Installation in bypass tubes feasible
• Supplementary level transmitter for NIVOFLIP magnetic flip indicator

FEATURES

• 2-wire compact transmitter with HART protocol
• Linearity: +/-0,25mm or +/-1mm
• Resolution: 0,1mm or 1mm
• Rigid or flexible probes up to 15 m
• Wetted parts stainless steel or plastic
• Plug-in field indicator module
• 99 point linearisation
• Distance, level and volume measurement
• Level, distance, volume and differential metering
• Explosion-proof models
• OIML R85 certification

SPECIFICATIONS

• Power supply: 12.5-36V DC
• Temperature: -40 °C to +90 °C
• Pressure: max. 25 bar
• Measuring range: 0.5 - 15 m
• Outputs: 4-20 mA, HART
• Process connection: 1'', 2'' or flanges
• Protection: IP 67
• ATEX approval:
  II 1 G Ex ia IIB T6...T5
  II 2 G Ex d IIB T6...T5
  II 1/2 G Ex d ia IIB T6...T5
• Approvals: OIML R85 certification
