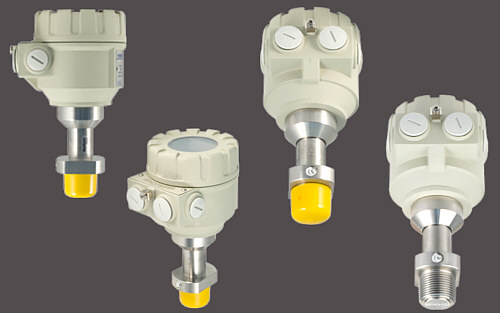

NIVOPRESS D - Hydrostatic level / pressure transmitter

• Most liquids and masses in tanks and vessels
• Chemicals with dense vapour or gas layers above the surface
• Foaming liquids
• Viscous or corrosive materials

FEATURES

• Two-wire compact transmitter
• Stainless steel diaphragm
• Measuring range: 0.1-400 bar, -1 bar
• Scalable analogue output
• Programmable damping
• Level and pressure management
• Secondary lightning protection
• High overload capability
• High accuracy <0.25%
• Wide temperature ranges
• HART communication
• Explosion-proof models

SPECIFICATIONS

• spec0: spec0
• Power supply: 10-36V DC
• Ambient temperature: -25 °C to +70 °C
• Medium temperature: -25 °C to +125 °C
• Pressure: 0.1-400 bar, -1 bar
• Outputs: 4-20 mA, HART
• Process connection: 1/2'', 1'', 11/2'' process connection or hygienic fitting
• Protection: IP 65
• ATEX approval:
  II 1 G EEx ia IIC T6...T4
