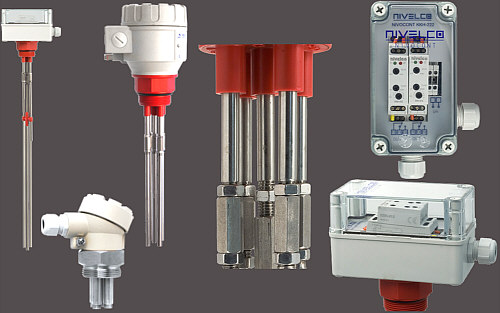

NIVOCONT K - Conductive level switches
APPLICATIONS
- Conductive liquids with min. 1x10-5 S/cm conductivity
- Fail-safe indication and pump control
- Chemical and water industry
- Water inrush indicator
FEATURES
- Low cost level switch
- Limit switch or differential switch versions
- Adjustable sensitivity
- Adjustable sensitivity
- Adjustable sensitivity High or low fail-safe mode
- All wetted parts stainless steel
- Compact unit with two independent relays
- Separate probe and relay unit
- Rod probes up to 3 m
SPECIFICATIONS
- Switch rating:
250 V AC, 16 A or 250 V AC, 8 A
- Power supply (unit):
110, 230 V AC, 24 V AC/DC
- or universal 24-240 V AC/DC
- Ambient temperature:
-20 °C to +55 °C
- Medium temperature:
up to 200 °C
- Medium pressure:
max. 16 bar
- Process connection:
3/8'' BSP, 1 1/2'' BSP
- Ingress protection:
IP 20, IP 65, IP67
|
|
