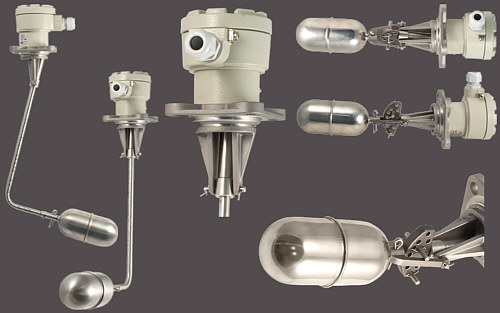

NIVOMAG - Magnetic coupling level switches
APPLICATIONS
- Liquids with min. 0.7 kg/dm3 density
- Fail-safe and control level switches in closed tanks
- Power stations, chemical, petrochemical and pharmaceutical industry
- Supplementary fail safe switch if combined with other devices
- Balance
tanks on ships
FEATURES
- Operation without power supply
- Micro-switch separated from process
- All wetted parts stainless steel
- Side or top mounting
- Fixed or adjustable switch differential
- Submersible versions
- Various process connections
- Operational check via optional tester
- Explosion-proof models
- SIL1 Safety Integrity Level
- Marine approvals
SPECIFICATIONS
- Switch rating:
250 V AC, 10 A
- Ambient temperature:
-20 °C to +80 °C
- Medium temperature:
up to +250 °C
- Medium pressure:
max. 25 bar
- spec0: square and standard flanges, 2'' thread
- Ingress protection:
IP 65, IP 68
- Ex marking:
ATEX II 1/2 G EEx dme IIC T6..T2 (TÜV)
- Certificates:
SIL1 Safety Integrity Level
- Marine approvals:
- Germanischer Lloyd (GL)
- Germanischer Lloyd (GL)
- Bureau Veritas (BV)
|
|
