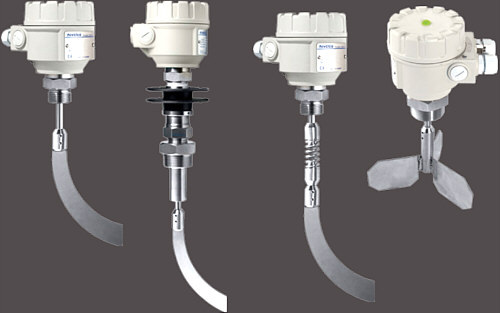

NIVOROTA - Rotary paddle level switches

• Granular material and powder with min. 0.1 kg/dm3 density
• High or low fail-safe
• Feed, coal, sand, rocks, limestone, metals, rubber

FEATURES

• Long service time
• Motor shut-off feature
• Flexible coupling
• Sealed bearings
• High temperature range
• True fail-safe version
• Dust-Ex models

SPECIFICATIONS

• Power supply: 230/120/24 V AC, 24 V DC
• Temperature: - 30°C to 200°C
• Pressure: max. 3 bar
• Output: SPDT Relay 250V AC, 15A
• Process connection: mouniting plate, or BSPT 1'' / 11/2''
• Ingress protection: IP67
• Ex marking: spec0
• ATEX approval:
  ATEX II 1/2 D Ex tb IIIC T__°C IP67 Da/Db
