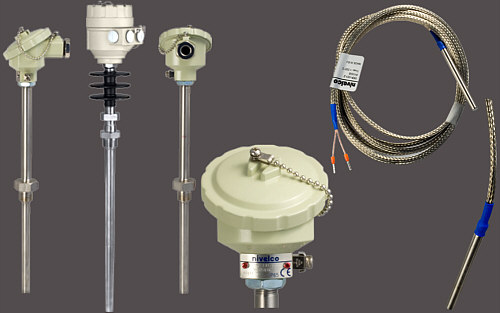

THERMOCONT T - Temperature sensor

• Temperature metering in tanks, tubes, furnaces or boilers
• Can be mounted to special technological places
• For temperature metering of liquids, vapours, gases
• Temperature metering in bearings
• Special versions for unique applications

FEATURES

• Thermocouples and RTDs (Resistance Temperature Detectors)
• Temperature range from -50 °C up to +600 °C
• A or B accuracy class in accordance to EN 60751
• 2- or 4-wire types
• Single or dual sensor versions
• Fast response sensor version
• Stainless steel probes
• PFA coated version
• Max. 3m probe length
• Vibration-resistant version
• Ex versions

SPECIFICATIONS

• Ambient temperature: -20 °C .. +80 °C
• Medium temperature: -50 °C .. +600 °C
• Sensor type: Pt 100
• Medium pressure: max. 25 bar
• Process connection: M20x1.5, 1/2'', flanges
• Ingress protection: IP 65
• Ex marking:
• ATEX approval:
  ATEX II 1G EEx ia IIC T6…T1, 600 °C0
  ATEX II 2G EEx d IIC T6…T1, 600 °C0
  ATEX II 1/2G EEx d ia IIC T6…T1, 600 °C0
