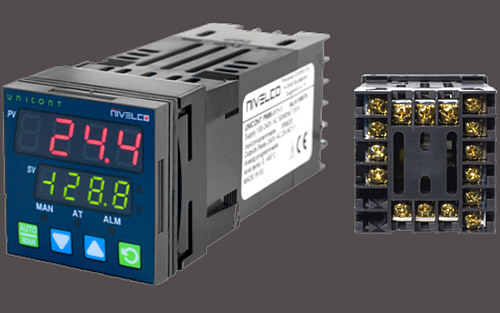

UNICONT PMM-500 - Universal controller / indicator
APPLICATIONS
- Temperature display
- Switching, control or transmitting tasks
- Cooling / heating control
- Alarm indication
FEATURES
- Universal input
- RTDs / Thermocouples
- Voltage / Current
- 2-line, 7 segments, 4-digit LED display
- ON-OFF control
- PID control
- Auto Tuning
- 230V AC or 24V AC/DC power supply
- Variable output versions
- Relays
- SSR drivers
- Power supply for transmitters
- Analogue output
- RS 485 (Modbus) communication
SPECIFICATIONS
- Power supply:
100-240 V AC 50/60 Hz 7.5 VA, 20-48 V AC 50/60 Hz 7.5 VA; 22-65 V DC 5 W
- Temperature range:
-240 °C .. +2320 °C
- Sensor input:
Pt100 resistance thermo-sensor, J, T, K, L, N, B, R, S, C, Pt Rh thermocouples
- Relay:
max. 3 pcs., SPDT - 240 V AC, 2A, AC1
- SSR driver:
Max. 2pcs., 0-10 V DC / 20 mA
- Power supply for transmitters:
19-28 V DC not regulated
- Nominal value:
24 V DC / 22mA
- Serial communication:
RS485 MODBUS RTU
- Analogue output:
4-20 mA, 0-20 mA / 500 Ohm - max. 0-5 V, 0-10 V, 2-10 V/500 Ohm min
|
|
