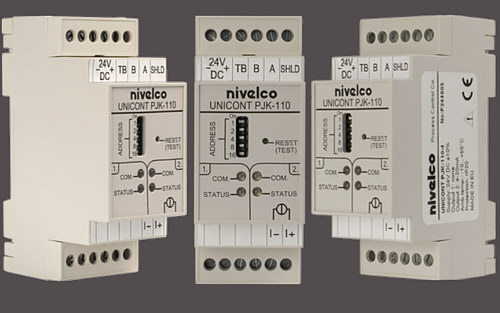

UNICONT PJK - Universal interface module

• Expanding a process control system with 2 relays or 2 current outputs
• For mixed systems: with 1 relay and 1 current output version
• Provides galvanic isolation

FEATURES

• Universal expander module for: ? PLC process control systems ? automated systems operating on RS485 ? MultiCONT process controller
• RS485 communication
• 4-20 mA current outputs
• Programmable relay outputs
• DIN rail mountable

SPECIFICATIONS

• Power supply: 24 V DC
• Ambient temperature: -10 °C...+55 °C
• Input: RS4845
• Output:
  relay 250 V AC, 8A, AC1
  current outputs (4-20mA)
  relay + 1 current output
• Protection: IP20
