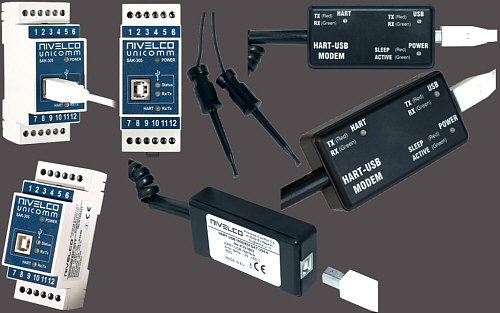

UNICOMM - HART modem

• Communication interface (modem) between HART-capable transmitters and PC
• Minimal system configuration:
• Free USB port
• Windows XP operation system

FEATURES

• Transferring measurement data to PC
• Connecting field transmitters to the USB or RS485 input of a PC
• DIN rail mountable or KLEPS2 connector version
• No need for power supply when USB output is used
• Galvanic isolation
• Ex version

SPECIFICATIONS

• Input: HART
• Output: USB / RS485 (HART over RS485)
• Power supply: Supplied from USB port / 24V DC (10-30 V) nominal voltage
• Connection to the HART line: KLEPS 2 / Terminal
• Connection to PC: USB 1.1 ''B'' socket / Terminal
• Ambient temperature: -25 °C .. +70 °C
• Ingress Protection: IP 20
• Ex marking
• ATEX approval:
  Ex II (1) G [Ex ia Ga] IIC
