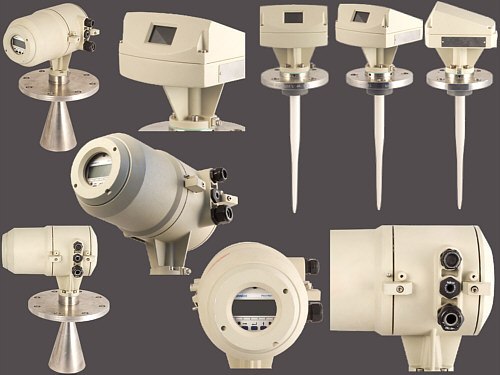

PiloTREK FMCW - Non-contact microwave

• Level or volume measurement
• Liquids, powders, granules with > 1.5
• Medium with dust, vapour or pressurized gas layers above the product surface
• Heavy industrial applications

FEATURES

• 2- or 4-wire FMCW technology
• TBF mode for low Er
• Digital communication
• Field indicator facility
• High accuracy up to ± 1 mm
• High pressure
• High temperature range
• Low dead band
• Explosion-proof models

SPECIFICATIONS

• Power supply: 24 V DC, 24 V AC, 100-120 V AC, 220-240 V AC
• Flange temperature: -60…+250 °C
• Pressure: 0….64 bar
• Measuring range: up to 40 m (100m)
• Analogue Output: 4…20 mA (active or passive)
• Communication: HART, Profibus PA, FF, Modbus (RS485)
• Protection: IP 66/67
• ATEX approval:
  II 1/2 G EEx de IIC T6...T1
  II 2 G EEx de IIC T6...T1
  II 1/2 G EEx de [ia] IIC T6...T1
  II (1)2 G EEx de [ia] IIC T6...T1
  II 1/2 G EEx ia IIC T6
