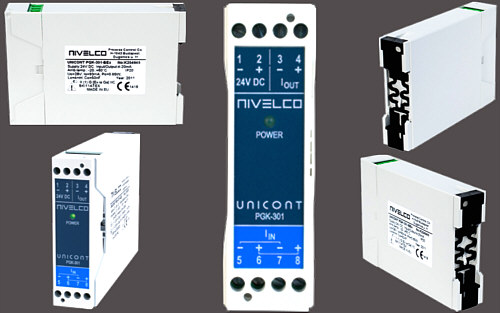

UNICONT PGK - Intrinsically safe isolator / power supply module

• For high precision transmitters
• For transmitters operating in hazardous applications
• For certified measurement instruments
• For 2-3 wire 4-20mA transmitters

FEATURES

• Intrinsically safe isolation
• Power supply for transmitters
• 20-35 V DC supply voltage
• 4-20 mA, HART communication
• Up to 1 µA transmission accuracy
• DIN rail mountable

SPECIFICATIONS

• Input: 4-20 mA
• Output: 4-20 mA / 4-20 mA+HART
• Power supply: 20-35V DC
• Transmission accuracy
  High precision type: 1 µA
  High speed type: 8 µA
• Response time:
  High precision type: 100 msec.
  High speed type: 5 msec.
• Power supply for transmitters: 22V DC galvanically isolated
• Ambient temperature: - 20 °C…+ 60 °C
• Ingress protection: IP20
